Inner Tube Curing Press (Tube Vulcanizer)
Single-layer Inner Tube Curing Press
Equipment use

It is used for various bicycle,motorcycle tube curing,except man operated tube operating and removal,the entitle curing process is automatically controlled. Its electrical parts adopt two ways of manual and linkage,equipped with PLC control system,thus ensuring simple,and reliable operation.

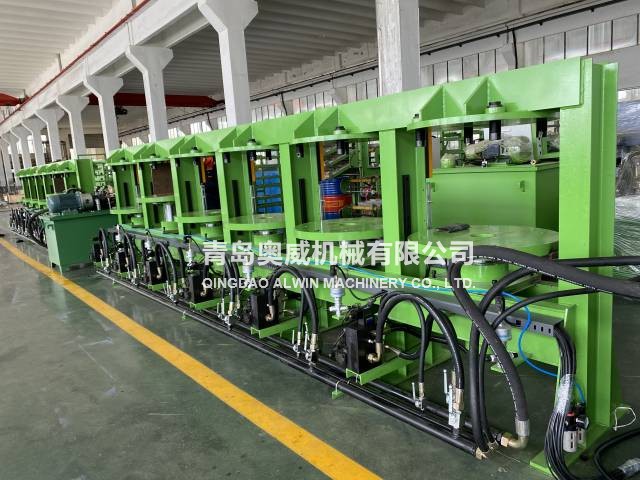

Single-layer Inner Tube Curing Press
Single-layer Inner Tube Curing Press
Single-layer Inner Tube Curing Press
Single-layer Inner Tube Curing Press
Parameter
型號TypeLLN-800 Single-layer
總壓力 Total pressure (KN)120
柱塞直徑 Dia. of plunger (mm)140
高壓壓力 High pressure (Mpa)10
低壓壓力 Low pressure (Mpa)1.8
蒸汽工作壓力 Steam working pressure (Mpa)0.7-1.0
電機功率 Motor power (kw)3
電氣控制 Electric control systemPLC
外形尺寸 Overall dim. (LxWxH) (mm)6500x1100x1800
